Asbestos Free(AF) Performance Packings - STYLE - 176
High performance ePTFE graphite packingwith aramid corners
CHAMPION KOMBIFLON™ Style 176 is a Combination Packing with tough para aramid fibre yarn (with each strand impregnated with PTFE dispersion and lubricated with Silicone oil) cross-plaited at the corners, ePTFE and graphite fibre yarn at the seam strands.
- Excellent abrasion resistance.
- Low shaft wear due to PTFE graphite yarn dissipating heat and providing low friction face to the shaft.
- Superior compression and recovery characteristics with out-of-true shafts and spindles.
- Exceedingly durable packing, with inherent dimensional stability, that offers high integrity sealing throughout its operational life.
CHAMPION KOMBIFLON™ Style 176 Combination Packings are used primary for sealing in high temperature, high pressure, abrasive media applications. Typical applications are valves, pumps, agitators, rotary and reciprocating applications in chemical process industries. Suitable for duties with ammonia and carbamate solutions, hydrazine, trisodium phosphate, sodium hexametaphosphate, black and green liquor, chemical slurries, paper pulp, contaminated water and molasses. Suitable for highly abrasive and slurry media.
Compatible with media in the range pH 2-13, including water, steam, fuels, oils, solvents, waxes, and mild acids and alkalis.
All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 1/8 | NA | NA | NA |
| 4 | 5/32 | NA | NA | NA |
| 5 | 3/16 | 23.53 | 10.00 | 0.43 (0.94) |
| 6 | 1/41 | 16.34 | 16.34 | 1 (2.2) |
| 8 | 5/16 | 9.77 | 9.77 | 1 (2.2) |
| 10 | 3/8 | 6.25 | 6.25 | 1 (2.2) |
| 12.5 | 1/2 | 4.13 | 4.13 | 1 (2.2) |
| 14 | 9/16 | 3.29 | 3.29 | 1 (2.2) |
| 16 | 5/8 | 2.60 | 2.60 | 1 (2.2) |
| 19 | 3/4 | 1.85 | 4.62 | 2.5 (5.5) |
| 22 | 7/8 | 1.38 | 3.44 | 2.5 (5.5) |
| 25 | 1 | 1.07 | 2.67 | 2.5 (5.5) |

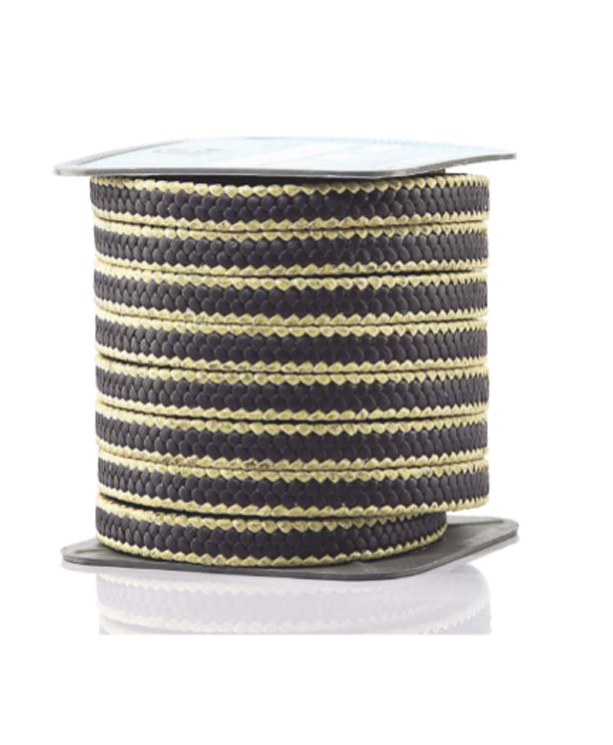

Champion Kombiflon TM
Style 176
