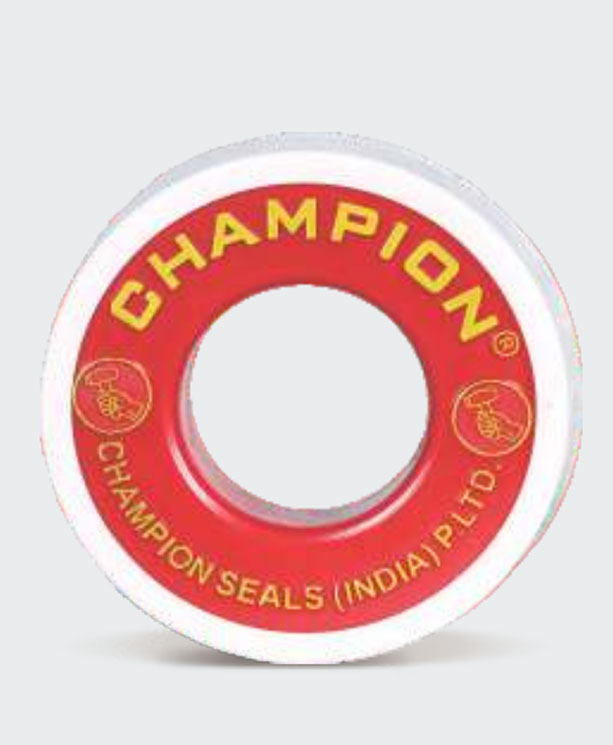

Champion PTFE Solutions - Thread Seal
Instruction
Wind the tape by hand, using a constant minimal tension sufficient for the tape to take up the form of the thread. The tape should be wound in a helical fashion with a 50% overlap in the direction of the thread so that when the connection is completed the finishing end of the tape remains in position. The tape width should not exceed the length of the thread form.
Operating Parameters :
Pressure
up to 20 bar ( 2.0 MPA)
Temperature Range
-374°F to +536°F
(-190°C to +280°C)
(-190°C to +280°C)
Thread Range
1/8” to 3” NPT, BST, Metric
Threaded Parts Material
Suitable for all metal & plastic fittings.
Chemical Resistance
Extreme resistance to most chemicals, corrosives, caustics, oils, solvents & gases
Approved for use
Food handling equipment, water, gas and biological systems.
Physical Properties
| Color | Natural (white) non-pigmented |
| Purity | 99.9% minimum virgin PTFE |
| Toxicity | Non-Toxic |
| Shelf Life | Indefinite |
| Density: | > 0.60 g/cm3 |
| Tensile (longitudinal) | 8 N/mm2 |
| Elongation (longitudinal) | 75% min. |
| Product | CT-125 | CT-190 | CT-250 |
| Width (+/-0.3mm) |
0.5" 12.5 mm |
0.75" 19 mm |
1" 25 mm |
| Length (+/-0.175M) |
12 M (13 yards) |
12 M (13 yards) |
12 M (13 yards) |
| Density (+/- 0.10 g/cm3) |
0.6 g/cm3 | 0.6 g/cm3 | 0.6 g/cm3 |
| Thickness (+/-0.0075mm) |
0.075 mm | 0.075 mm | 0.075 mm |
| Colour (Spool/Case) |
White/Red | White/Blue | White/Green |
