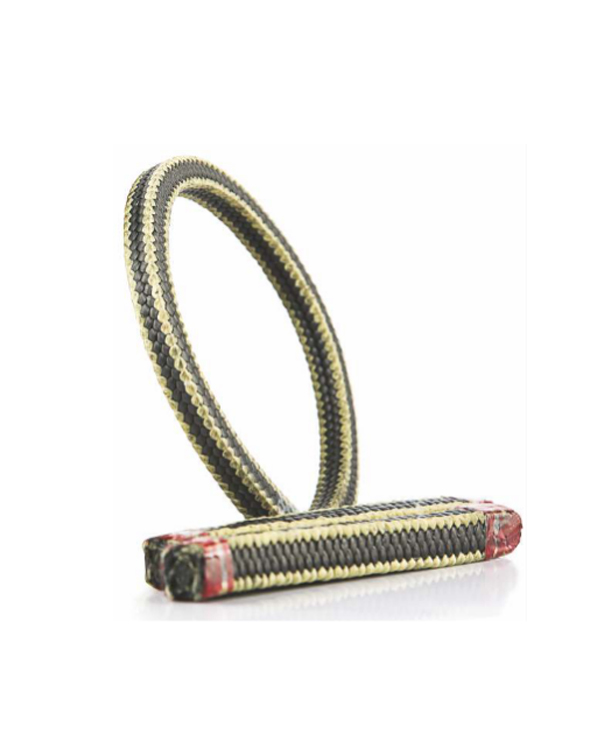

Asbestos Free(AF) Performance Packings - STYLE - 6373
Tough PTFE graphite packing with aramid corners
CHAMPION KOMBIFLON™ Style 6373 is a Combination Packing with soft spun carded aramid fibre yarn (with each strand impregnated with PTFE dispersion and lubricated with Silicone oil) cross-plaited at the corners, PTFE and graphite fibre yarn at the seam strands.
- Excellent sealability over wide range of media applications.
- PTFE graphite yarn dissipating heat and providing low friction face to the spindle.
- Tough but softer packing which is less abrasive than aramid filament packings.
- A durable packing able to withstand abrasive and granular applications.
CHAMPION KOMBIFLON™ Style 6373 Combination Packing is recommended to service in slurries, petroleum derivatives, chemicals, solvents, liquified gases, superheated steam, pulp and paper abrasive media.
For highly abrasive media with higher pressure and temperature capabilities please refer Champion Style 176.
Compatible with media in the range pH 2-13, including water, steam, fuels, oils, solvents, waxes, and mild acids and alkalis.
All popular sections from 6mm to 25mm in boxes containing coil form by meter or 2.5/5 kilograms. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 6 | 1/4 | 18.52 | 46.3 | 2.5 (5.5) |
| 8 | 5/16 | 10.78 | 26.94 | 2.5 (5.5) |
| 10 | 3/8 | 6.90 | 17.24 | 2.5 (5.5) |
| 12.5 | 1/2 | 4.57 | 11.43 | 2.5 (5.5) |
| 14 | 9/16 | 3.64 | 9.11 | 2.5 (5.5) |
| 16 | 5/8 | 2.89 | 7.23 | 2.5 (5.5) |
| 19 | 3/4 | 2.13 | 10.65 | 5 (11) |
| 22 | 7/8 | 1.59 | 7.95 | 5 (11) |
| 25 | 1 | 1.23 | 6.15 | 5 (11) |
Champion Kombiflon TM
Style 6373
