Asbestos Free(AF) Performance Packings - STYLE - 6094
Acrylic based synthetic packing for general duties.
CHAMPION Style 6094 PTFE Fibre Packing is an universal packing braided from strong Polyacrylonitrile (PAN) yarn. It is thoroughly impregnated with our proprietary PTFE-based dispersion and then treated with special lubricants to enhance overall performance.
- Better mechanical strength than packings made of flax.
- Suitable for use on clean water duties.
- PTFE-based dispersion enhances chemical resistance and improves the density and sealing ability of the product.
- Low friction and low wear on shaft sleeves.
CHAMPION Style 6094 PTFE Fibre Packings is recommended as a general purpose packing in the chemical industry for valves, centrifugal pumps and rotary equipment. It is also ideal for static applications including tank lids, hatches and inspection covers. It is not suitable for reciprocating pumps or rams.
Compatible with media in the range pH 1-14. Recommended to be used in chilled water, brine solution and mild alkalies/acids.
All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms.
Also supplied as split pre-formed rings and ring sets.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 3/32 | 74.07 | 10.00 | 0.01 (0.02) |
| 4 | 1/8 | 41.67 | 10.00 | 0.02 (0.04) |
| 5 | 3/16 | 26.67 | 10.00 | 0.04 (0.08) |
| 6 | 1/4 | 19.84 | 19.84 | 1 (2.2) |
| 8 | 5/16 | 12.50 | 12.50 | 1 (2.2) |
| 10 | 3/8 | 8.00 | 8.00 | 1 (2.2) |
| 12 | 1/2 | 5.57 | 5.57 | 1 (2.2) |
| 14 | 9/16 | 4.44 | 4.44 | 1 (2.2) |
| 16 | 5/8 | 3.72 | 3.72 | 1 (2.2) |
| 19 | 3/4 | 2.64 | 6.60 | 2.5 (5.5) |
| 22 | 7/8 | 2.07 | 5.17 | 2.5 (5.5) |
| 25 | 1 | 1.60 | 4.00 | 2.5 (5.5) |

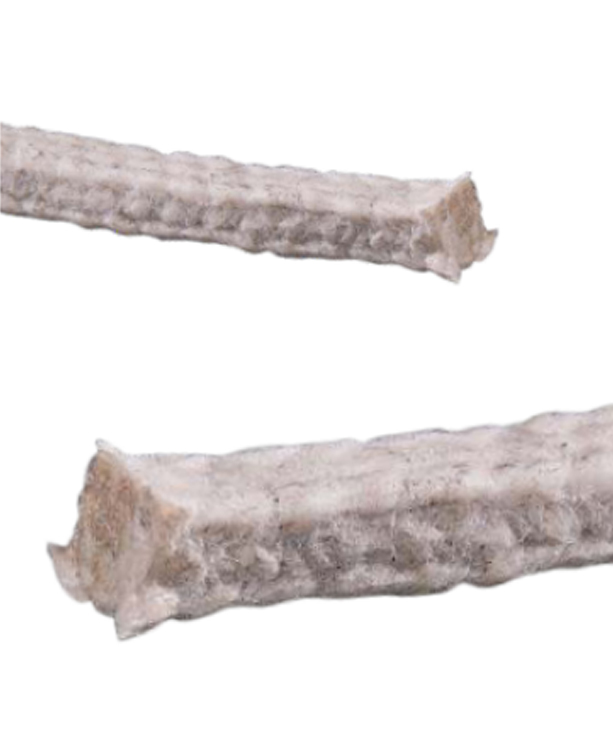

Champion PTFE
Style 6094
