Asbestos Free(AF) Performance Packings - STYLE - 376
General duties for all hydraulic applications
CHAMPION HYDROFLON™ Style 376 Packing is a hydraulic packing which is braided from soft natural fibre yarn impregnated yarn-by-yarn with dispersed with high grade MICA flakes and treated with special inert lubricants.
- Lubrication reduces shaft wear and friction.
- MICA helps in lubrication and dissipating heat.
- Superior surface finish and moisture-proof.
- Improved resistance to wear and tear.
CHAMPION HYDROFLON™ Style 376 Packings are recommended for use in hydraulic applications in low and medium centrifugal pumps, pistons, saline and muddy water at high RPMsThe packing is suitable for all hydraulic applications.
Compatible with media in the range pH 6-10. Suitable for use with cold water applications, condensates and hydraulic fluids.
All popular sections from 6mm to 25mm in boxes containing 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 6 | 1/4 | 17.92 | 6.00 | 0.33 (0.72) |
| 8 | 5/16 | 10.42 | 6.00 | 0.57 (1.25) |
| 10 | 3/8 | 6.67 | 6.00 | 0.90 (1.98) |
| 12.5 | 1/2 | 4.57 | 3.00 | 0.65 (1.43) |
| 14 | 9/16 | 3.64 | 3.00 | 0.82 (1.80) |
| 16 | 5/8 | 2.79 | 3.00 | 1.07 (2.35) |
| 19 | 3/4 | 1.98 | 3.00 | 1.51 (3.32) |
| 22 | 7/8 | 1.53 | 3.00 | 1.96 (4.31) |
| 25 | 1 | 1.19 | 3.00 | 2.52 (5.54) |

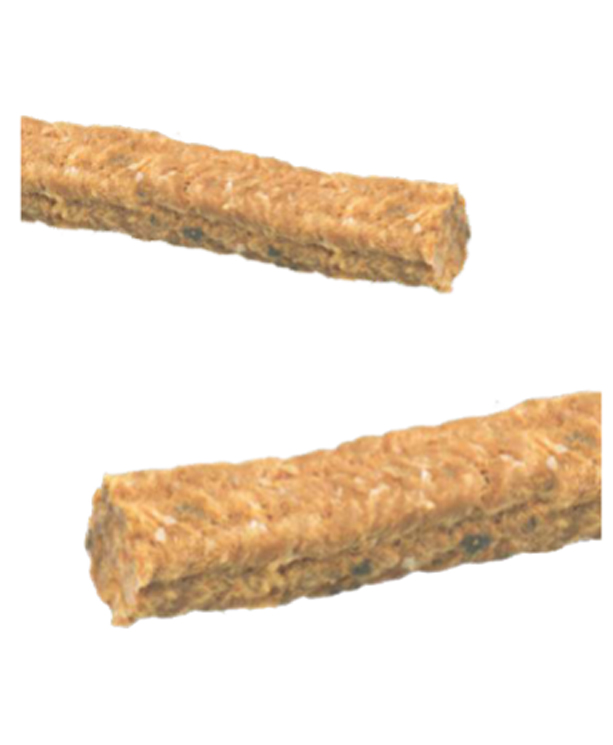

Champion Hydroflon TM
Style 376
