Asbestos Free(AF) Performance Packings - STYLE - 3116
General purpose packing for all pump application
CHAMPION Natural Fibre Gland Packing Style 3116 is a economical packing which is braided from soft long staple natural cotton fibre yarn impregnated with a blend of special run in lubricants and graphite dispersion to ensure heat withstanding capacity in operations.
- Very low coefficient of friction.
- Good dimensional stability.
- High Compressibility.
- Very good resilience.
- High flexibility.
CHAMPION Natural Fibre Gland Packing Style 3116 are recommended for use in applications rotary pump, reciprocating pump, domestic fresh water pump.
Compatible with media in the range pH 6-8. Suitable for use with hot and cold water, condensates and hydraulic fluids.
All popular sections from 6mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 6 | 1/4 | 19.84 | 6.00 | 0.30 (0.66) |
| 8 | 5/16 | 11.57 | 6.00 | 0.52 (1.14) |
| 10 | 3/8 | 7.41 | 6.00 | 0.81 (1.78) |
| 12.5 | 1/2 | 4.92 | 3.00 | 0.61 (1.34) |
| 14 | 9/16 | 3.92 | 3.00 | 0.76 (1.67) |
| 16 | 5/8 | 3.00 | 3.00 | 1.00 (2.2) |
| 19 | 3/4 | 2.13 | 3.00 | 1.41 (3.10) |
| 22 | 7/8 | 1.59 | 3.00 | 1.89 (4.15) |
| 25 | 1 | 1.23 | 3.08 | 2.44 (5.36) |

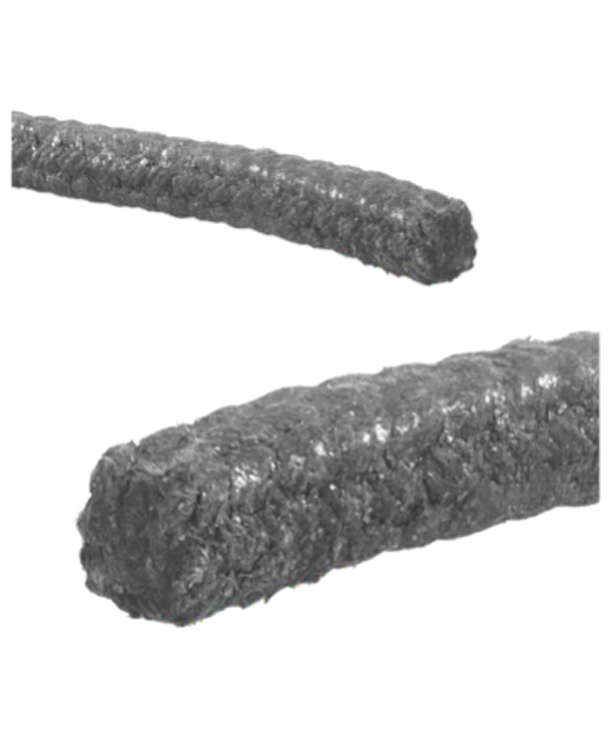

Champion Natural Fibre
Style 3116
