Asbestos Free(AF) Performance Packings - STYLE - 1
FDA confirming food grade ePTFE packing for cleanliness

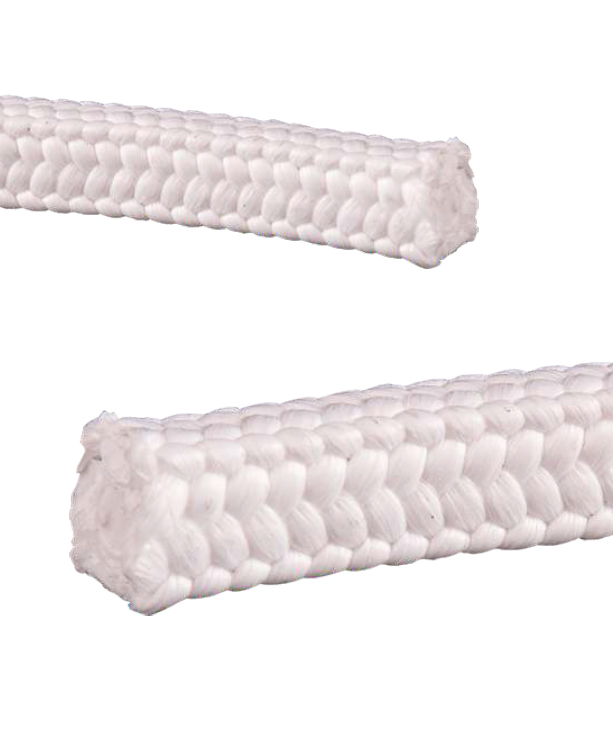

CHAMPION DRYLONTM Style 1 Packing is an interlocked braided packing made of premium FDA approved food grade pure dry ePTFE fibre yarn. It is non-toxic, and contains no lubricants or additives.
- Very low coefficient of friction.
- Good dimensional stability.
- Long service-free life, with virtually no volume loss due to chemical action.
- Minimal wear on shafts and sleeves.
- Very little gland adjustment needed after initial installation.
- High Compressibility.
CHAMPION DRYLONTM Style 1 Packing is commonly used in valves and lower shaft speed applications, Slow speed centrifugal, reciprocating pumps and other rotary equipment in applications where hygiene and the low friction characteristics of pure PTFE are required. It is also suitable for use with potable water, food contact applications and pharmaceutical products since it does support bacterial growth or cause product contamination.
Inert to chemicals within the range pH 0-14, excluding molten alkali metals, fluorine compounds and aqua regia. Can be used in concentrated acids, alkalies and aggressive vapours and gases.
All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 1/8 | 61.73 | 10.00 | 0.16 (0.35) |
| 4 | 5/32 | 29.76 | 10.00 | 0.34 (0.75) |
| 5 | 3/16 | 21.05 | 10.00 | 0.48 (1.06) |
| 6 | 1/4 | 16.34 | 16.34 | 1 (2.2) |
| 8 | 5/16 | 9.19 | 9.19 | 1 (2.2) |
| 10 | 3/8 | 6.67 | 6.67 | 1 (2.2) |
| 12.5 | 1/2 | 4.27 | 4.27 | 1 (2.2) |
| 14 | 9/16 | 3.40 | 3.40 | 1 (2.2) |
| 16 | 5/8 | 2.60 | 2.60 | 1 (2.2) |
| 19 | 3/4 | 1.85 | 4.62 | 2.5 (5.5) |
| 22 | 7/8 | 1.42 | 3.56 | 2.5 (5.5) |
| 25 | 1 | 1.10 | 2.76 | 2.5 (5.5) |
Champion DrylonTM
Style 1
