Asbestos Free(AF) Performance Packings - STYLE - 83G

High strength carbon fibre guaranteeing goodsliding and thermal properties

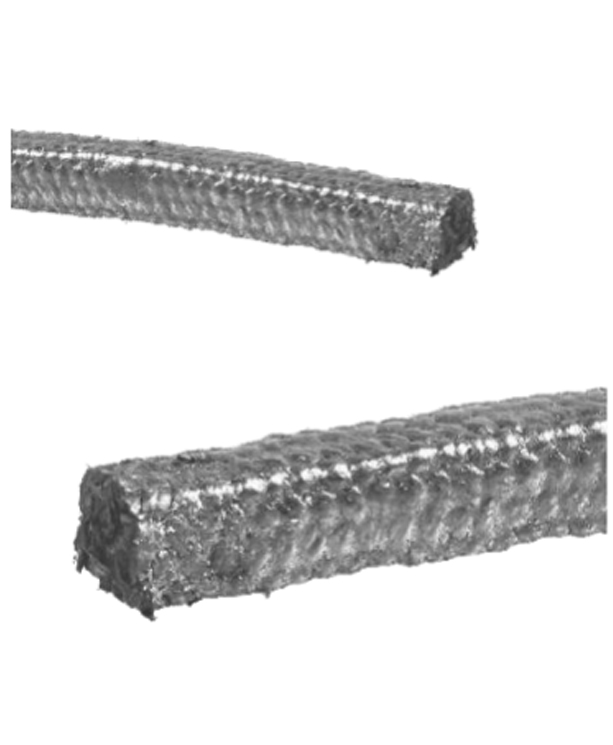

CHAMPION Style 83G Carbon Packing is tough carbon fibre packing, manufactured from a carbon filament yarn thoroughly impregnated with PTFE/Graphite suspension along with lubricant to enhance seal ability, thermal conductivity, flexibility and low co-efficient of friction.

  • High mechanical strength.
  • Good sliding and thermal properties.
  • Resistance to overheating.
  • Graphite improves laminar lubrication effect and limits the risk of excessive shaft wear.

CHAMPION Style 83G Carbon Packings are best suited for enhanced sealing at high temperature and pressure applications.

1.Boiler feed pumps, super heat steam, agitators, mixers, digester, crystallizers.

2.Pumps, Valves and other static or dynamic equipment handling corrosive chemicals and abrasive media.

Compatible with media in the range pH 0-14 suitable for use with acid, alkali, solvent, boiler feed water, caustic, liquor, oil, gases, hydrocarbons, super-heated steam, solvents, oils, corrosive fluids, and low temperature fluids.

All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5/5 kilograms.

Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.

Size Standard Packaged (±10%)
mm inch Meter/kg Meter/box Kg/coil (Lbs)
3 1/8 61.73 10.00 0.16 (0.35)
4 5/32 39.06 10.00 0.26 (0.57)
5 3/16 25.00 10.00 0.40 (0.88)
6 1/4 18.52 18.52 1 (2.2)
8 5/16 10.78 10.78 1 (2.2)
10 3/8 6.90 6.00 1 (2.2)
12.5 1/2 4.57 4.57 1 (2.2)
14 9/16 3.64 3.64 1 (2.2)
16 5/8 2.89 2.89 1 (2.2)
19 3/4 2.13 5.33 2.5 (5.5)
22 7/8 1.59 3.97 2.5 (5.5)
25 1 1.23 3.08 2.5 (5.5)
Champion CarbosuperTM Style 83G
