Environment Friendly Sealing and
Heat Insulation Solutions

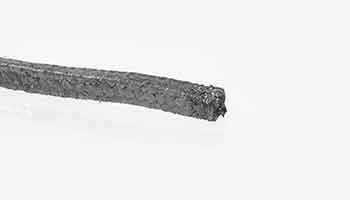

Asbestos Free(AF) Performance Packings - STYLE - 668m

Pure Graphite Braided Packing - with SS or Inconel Wire.

Champion Style 668 METALLIC Expanded Pure Graphite Braided Packing is manufactured with reinforced Inconel wire or Stainless steel wire and is highly recommended for high temperature & high pressure applications. It enjoys the advantages of braided packing having high Flexibility / Resiliency and also have all the characteristics of Flexible Pure Graphite i.e. the Packing does not contain oil, grease or binder of any kind or any other contamination. This packing dissipates heat properly as it is a good thermal conductor leading to its longer, leakage free life. Expanded pure Graphite packing with metallic wire reinforcement can be supplied in rope form and also in pre formed rings in single oblique cut to your custom made exact size.

Service Recommendations :
Superheated and saturated steam, Non-oxidising fluids, Dyes and Chemicals, Fuel Oil & Lube Oil, Hydrocarbon etc.

Typical Physical Properties

PH Temperature Size
0-14 -2000C To 33000C
(Non-Oxidising)
-2000C To 5000C
(Oxidising)
-2000C To 6500C
(Steam)
Bar Bar m/s Bar m/s mm2
450 200 15 300 2 3-100
