Asbestos Free(AF) Performance Packings - STYLE - 663

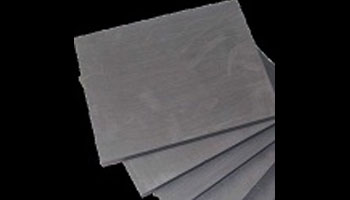

Graphite Gasket Sheet ( 1.5 mm / 3 mm)

Champion Style 663 is a High Tech Jointing/Gasket Sheet manufactured from Exfoliated Graphite having purity level of 99.0% to 99.9% carbon. These Jointing/Gasket Sheets are free from any kind of contamination and are 100% Asbestos Free.

Champion Style 663 is available in Non-Metallic variety and with Metallic Reinforcement.

Sheet Size :
1500 x 1500 mm. Also Available with metallic Re-inforcement of SS plain or perforated tanged sheet.

Service Recommendations :
Super Heated and saturated steam, all Oxidizing liquids and gases, Oxygen Services, Cryogenic Services, Hydro Carbon, Dyes & Chemicals, Fuel Oil & Lube Oil etc..

Application :
Flanges of Pipe, Pump & Valve, Internal Combustion Engines, Compressors, Cylinder Head, Exhaust Manifold etc..

Typical Physical Properties

PH Temperature Size
0-14 -2000 to +33000
(Non-Oxidising)
-2000 to +6000
(Oxidising)
-2000 to +6500
(Steam)
Bar Bar m/s Bar m/s mm2
40 Bar (Non-Metallic) & 140 Bar (Metallic) For Static
