Asbestos Free(AF) Performance Packings - STYLE - 38
High performance carbon fibre having excellent strength with low friction & heat dissipation.

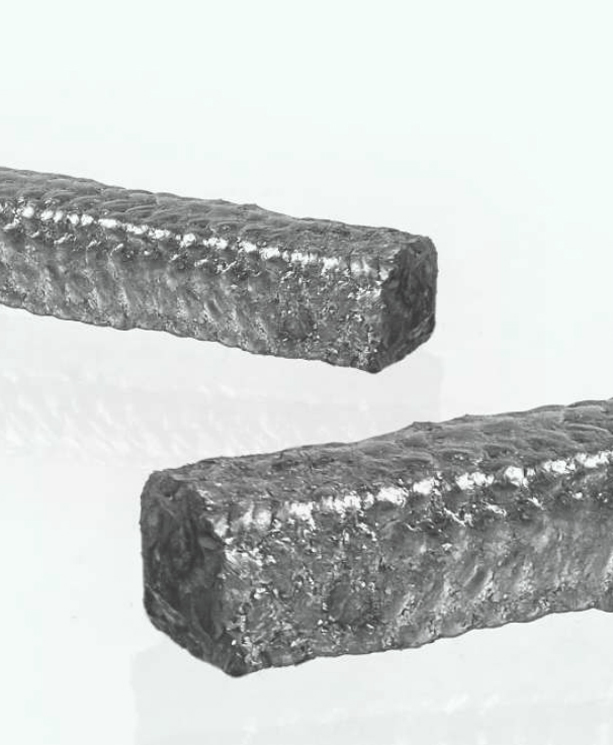

CHAMPION CARBOSUPER ™ Style 38 Carbon Packing Packing is manufactured from a high purity carbon filament yarn and thoroughly impregnated with special grade PTFE graphite mixture and a corrosion inhibitor.
- Excellent heat dissipation and low friction qualities.
- Corrosion inhibitor prevents galvanic corrosion when used on applications with steam.
- Strong, pliable and abrasion resistant.
- Inter-braiding plus blocking agent ensures leak-free construction.
- The packing has excellent resistance to chemicals.
CHAMPION CARBOSUPER ™ Style 38 Carbon Packings are best suited for high speed, high temperature and pressure applications in sealing boiler feed pumps, super heat steam, agitators, mixers, digester, crystallisers.
It is recommended for valve stem packing and for pump seals.
Compatible with media in the range pH 1-14 suitable for use with Acid, Alkali, Solvent, Boiler Feed Water, Caustic, Liquor, Oil, Gasses, Hydrocarbons, super-heated steam, solvents, oils, non oxidising mineral acids and alkalies. Not recommended for Oxygen, fuming nitric acid, Fluorine, strong oxidising agents and Aqua Regia.
All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms.
Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.
| Size | Standard Packaged (±10%) | |||
|---|---|---|---|---|
| mm | inch | Meter/kg | Meter/box | Kg/coil (Lbs) |
| 3 | 1/8 | 61.73 | 10.00 | 0.16 (0.35) |
| 4 | 5/32 | 39.06 | 10.00 | 0.26 (0.57) |
| 5 | 3/16 | 25.00 | 10.00 | 0.40 (0.88) |
| 6 | 1/4 | 18.52 | 6.00 | 0.54 (1.19) |
| 8 | 5/16 | 10.78 | 6.00 | 0.93 (2.05) |
| 10 | 3/8 | 6.90 | 6.00 | 1.45 (3.19) |
| 12.5 | 1/2 | 4.57 | 3.00 | 2.19 (4.82) |
| 14 | 9/16 | 3.64 | 3.64 | 1 (2.2) |
| 16 | 5/8 | 2.89 | 2.89 | 1 (2.2) |
| 19 | 3/4 | 2.13 | 5.33 | 2.5 (5.5) |
| 22 | 7/8 | 1.59 | 3.97 | 2.5 (5.5) |
| 25 | 1 | 1.23 | 3.08 | 2.5 (5.5) |
Champion Carbosuper ™
Style 38
