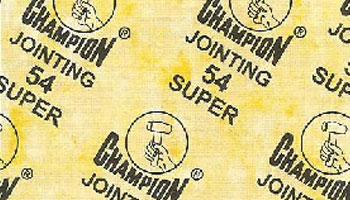

COMPRESSED ASBESTOS FIBRE JOINTING SHEETS & GASKETS - 54 Super

Product Profile

Manufactured from excellent quality of Chrysotile Asbestos Fibre and raw materials, the blend being intimately mixed with heat resisting rubber compounds under special process, to ensure maximum stability against high pressure and temperatures. Though primarily a super heated steam Jointing it is also recommended against saturated Steam, Oxygen, petroleum distillates, oils and fats, fuels, internal combustion engines, hydrocarbons, alcohols, solvents, lyes, etc. It is popularly used in MARINE ENGINES, electricity generating sets etc.

Colour:YELLOW/GREY OR GRAPHITED

Technical Data

Recommended Max Temperature   oC
550oC
Recommended Max Pressure Kg./cm2
150 Kg/sq.cm.
Specification Compliance
(Indian IS 2712 - 1998 Grade W/1)
(IS 2712 - 1971 Grade A/S)
(DGS & DG/MISC/ 81-C item 12 (a) Special Quality)
(British BS 2815 - 1973 Grade A))
