Asbestos Free(AF) Performance Packings - STYLE - 3

High performance ePTFE/graphite for having excellent abrasion and chemical resistance

Product Description

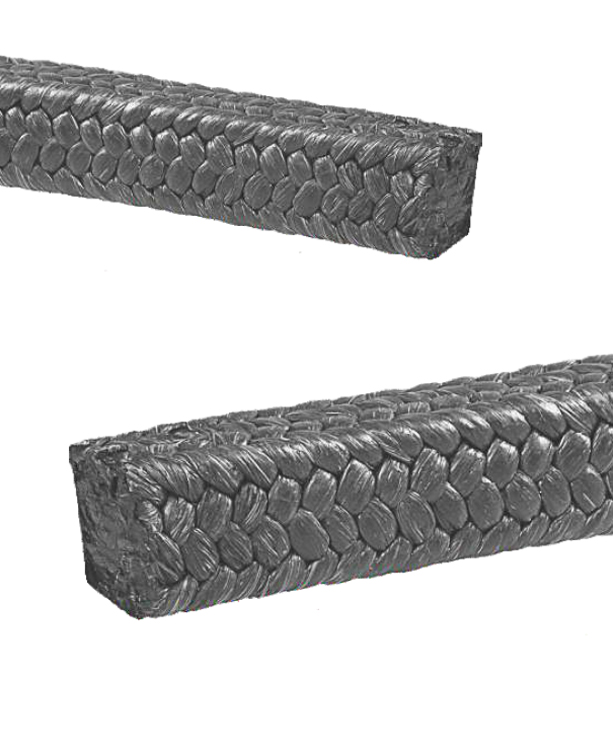

CHAMPION FLUROCARB ™ Style 23 (High Tensile ePTFE Graphite) Packing is constructed from high tensile strength ePTFE yarn which incorporates high quality graphite for better heat transfer. The constituents impart improved thermal conductivity, heat dissipation, lubricity, low thermal expansion coefficient and low coefficient of friction.

Key Features

High tensile strength.
Low coefficient of friction.
Minimal wear on shafts and sleeves.
Long life valve sealing with minimum maintenance.

Applications

CHAMPION FLUROCARB ™ Style 23 (High Tensile ePTFE Graphite) Packings is used in high speed shafts in rotating, reciprocatory and static services, valve stems, slurry and high pressure applications.

Service Media

Compatible with media in the range pH 3-14 excluding strong oxidizing agents but excluding molten alkali metals, fluorine compounds, aqua regia, fuming nitric acid and ammonium nitrate. Also suitable for use with demineralized water, raw water, hydrocarbons, paints, synthetic resins, emulsions, viscous slurries, and many other general industrial media.

How Supplied

All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Also supplied as split pre-formed rings and ring sets. Special size and lengths available on request.

Spool Ordering Information

Size		Standard Packaged (±10%)
mm	inch	Meter/kg	Meter/box	Kg/coil (Lbs)
3	1/8	54.20	10.00	0.18 (.39)
4	5/32	28.41	10.00	0.35 (7.49)
5	3/16	19.05	10.00	0.53 (1.10)
6	1/4	14.25	14.25	1 (2.2)
8	5/16	8.01	8.01	1 (2.2)
10	3/8	5.56	5.56	1 (2.2)
12.5	1/2	3.56	3.56	1 (2.2)
14	9/16	3.00	3.00	1 (2.2)
16	5/8	2.30	2.30	1 (2.2)
19	3/4	1.68	4.20	2.5 (5.5)
22	7/8	1.29	3.23	2.5 (5.5)
25	1	1.10	2.76	2.5 (5.5)
