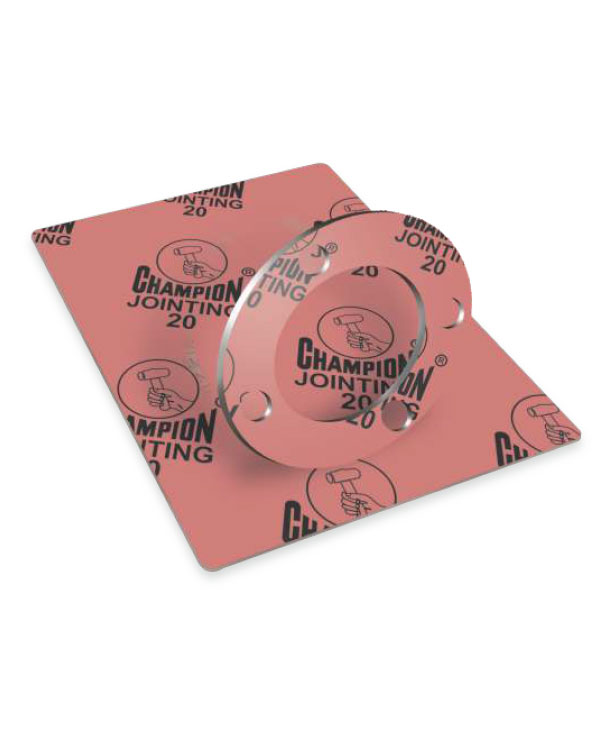

COMPRESSED ASBESTOS FIBRE JOINTING SHEETS & GASKETS - CHAMPION Style 20 Red
High grade fibre with fillers and binders
Champion Style 20 Red CAF Gasket is a consistently uniform and resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this ‘STEAM’ Jointing the choice packing of Plant engineers and maintenance men for last 6 decades, one of the largest selling product in the world for gasket sheets.
Champion Style 20 Red CAF Gasket is available in non-metallic and also in metallic option i.e with steel wire reinforced gauze insertion and supplied with smooth anti stick Graphite finish on the top. This grade is produced in Red (non metallic) and graphited black color.
Champion Style 20 Red CAF Gasket can be used as jointing for general purpose, medium performance duties. Preferred as gasket for liquid and gases in low internal pressure and temperature. Suitable for flanges with low bolt loading conditions.
Corrosive / non-corrosive gases, steam, condensate, water, air, oils, solvents and a wide range of other media (Low service conditions).
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 4500 mm | |
| Thickness (mm) | 0.5 mm; 0.75/0.8 mm; |
| 1.0 mm; 1.5 mm; 2.0 mm; | |
| 3.0 mm; 4.0 mm; 5.0 mm |
| Description | Standard Specs | Industrial Grade |
|---|---|---|
| Density | DIN 28090-2 | 2.0-2.2 g/cm3 |
| Tensile Strength | IS 2712:1998 | ≥9.5 MPa / 95 Bar (1378 psi) |
| Compressibility | ASTM F 36 | 7% to 12% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥20 MPa /200 Bar (2900 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥42.5% |
| Ignition Loss | DIN 52911 | ≤20% |
Champion Gasket
Style 20 Red
