Champion PTFE Solutions - Vulcan Plumbing
Operating Parameters :
Pressure
Up to 30 bar (2.0MPA)
Temperature Range
-374°F to +536°F
(-190°C to +280°C)
(-190°C to +280°C)
Thread Range
1/8” to 3” NPT, BST, Metric
Threaded Parts Material
Suitable for all metal and plastic fittings
Chemical Resistance
Mostly water applications
Approved for use
Muncipal water supply pipelines, Plumbing systems
Physical Properties
| Color | Natural (white) non-pigmented |
| Purity | 99.9% minimum virgin PTFE |
| Toxicity | Non-Toxic |
| Shelf Life | Indefinite |
| Tensile (longitudinal) | 8 N/mm2 |
| Elongation (longitudinal) | 50% min. |
| Produc t | VT-1205 | VT-1210 |
| Width (+/-0.3mm) | 12 mm | 12 mm |
| Length (+/-0.175M) | 5 M | 10 M |
| Thickness (+/-0.0075mm) | 0.075 mm | 0.075 mm |
| Colour (Spool/Case) | White/Blue | White/Red |

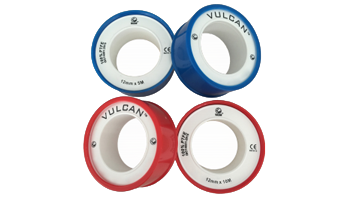

Vulcan™ PTFE Thread Seal Tapes are stringently checked by our Quality Control Department to ensure that we meet your expected quality and specifications
