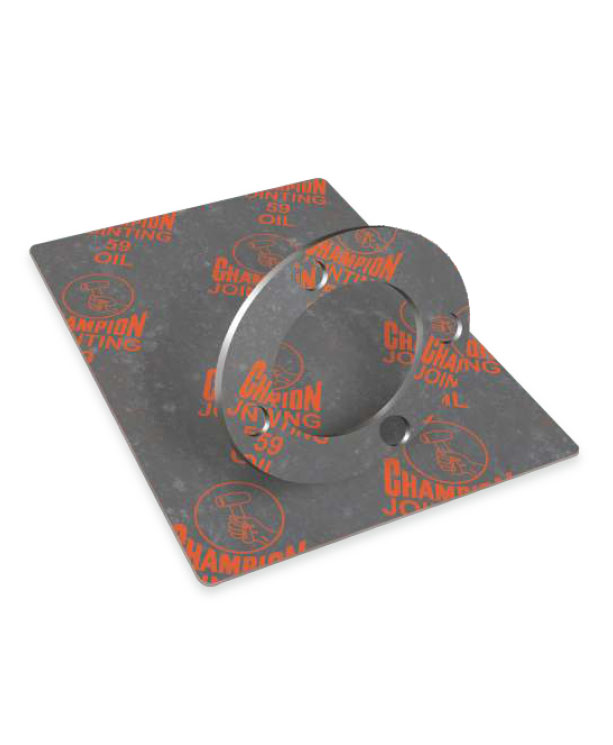

COMPRESSED ASBESTOS FIBRE JOINTING SHEETS & GASKETS - CHAMPION Style 59 Oil Premium

Compressed fibre jointing sheet with premium binders and fillers

Product Description

Champion Style 59 Oil Premium is manufactured from premium grade fibre and compounded with specialized elastomers under special curing process to withstand the most exacting demands of oil related applications.

Champion Style 59 Oil Premium jointing sheets are developed for superior performance for severely critical applications and this quality is applicable to a wide range of duties with severe working conditions of temperature and pressure.

Applications

Champion Style 59 Oil Premiumcan be used as high-performance jointing sheet for high temperature and pressure applications related to oil, grease, lubricant, petrochemical, solvent applications.

Service Media

This gasket is recommended for distillates, oil refining, industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants.

How Supplied

Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.

Sheet Ordering Information

Available Sheet Sizes in mm (+/- 5%)	1600 mm x 4000 mm
	1500 mm x 2000 mm
	1600 mm x 2000 mm
	2000 mm X 6000 mm
Thickness (mm)	0.5 mm; 0.75 mm; 1.0 mm;
	1.5 mm; 2.0 mm; 3.0 mm;
	4.0 mm; 5.0 mm

Typical Physical Properties

Description	Standard Specs	Typical Values
Density	DIN 28090-2	1.9-2.2 g/cm²
Tensile Strength	IS 2712:1998	≥28 MPa /280 Bar (4061 psi)
Compressibility	ASTM F 36	7% to 10.5%
Stress Relaxation	@40 MPa16 hr/300°C-IS 6210	≥30 MPa /300 Bar (4351 psi)
Gas Permeability	BS 7531	<0.5 cc/min
Recovery	ASTM F 36	≥50%
Ignition Loss	DIN 52911	≤25%
