Asbestos Free(AF) Fibre Jointing Sheets - AF 160
Compressed fibre jointing sheet with chemical resistant binder

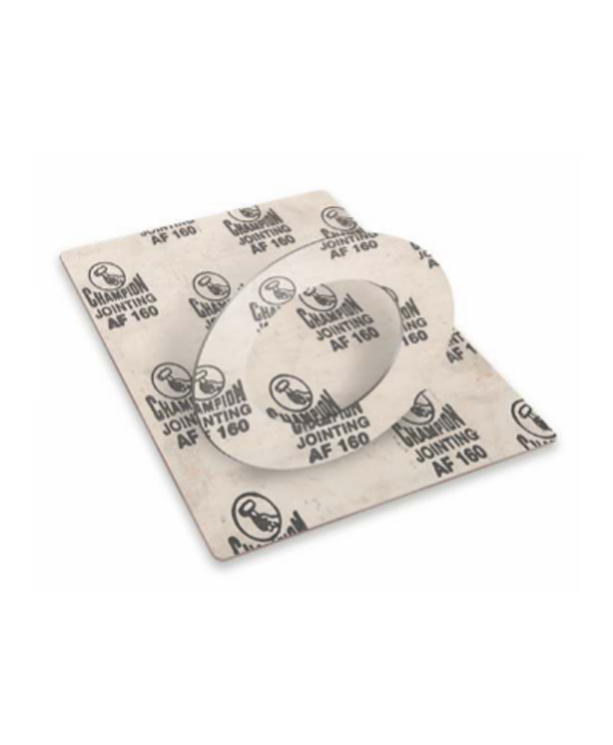

Champion Style AF 160 Acid is special purpose BS7531 Grade-X Asbestos-Free (AF) Jointing sheet. This chemical resisting compressed fibre jointing sheet contains aramid fibres bonded with a special combination of binders consisting of synthetic elastomer (NBR) and additives.
Champion Style AF 160 Acid gaskets are manufactured in non-metallic version (that is, without wiremesh reinforcement). This gasket is manufactured in off-white (cream) color.
Champion Style AF 160 Acid Gasket is commonly used for all acid and chemical resistant applications.
Suitable for use in organic, concentrated acids, alkali, chemicals to withstand corrosive media applications.
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) |
1600 mm x 1500 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 4500 mm | |
| 2000 mm X 6000 mm | |
| Thickness(mm) | 0.4/0.5 mm; 0.75/0.8 mm; 1.0 mm; 1.5 mm; 2.0 mm;3.0 mm; 4.0 mm; 5.0 mm |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 1.8-2.0 g/cm3 |
| Tensile Strength | ASTM F 152 | ≥15 MPa / 150 Bar (2175 psi) |
| Compressibility | ASTM F 36 | 8% to 12% |
| Residual Stress | BS 7531 | ≥25 MPa /250 Bar (3625 psi) |
| Gas Permeability | BS 7531 | <0.1 cc/min |
| Recovery | ASTM F 36 | ≥50% |
| Water Absorption | BS 7531 | ≤5% |
| Ignition Loss | DIN 52911 | ≤35% |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Weight Increase | ASTM Oil No.3 : 5hr/150°C(300°F) | <10% |
| ASTM Fuel B : 5hr/23°C(73.4°F) | <10% | |
| Thickness Increase | ASTM Oil No.3 : 5hr/150°C(300°F) | <10% |
| ASTM Fuel B : 5hr/23°C(73.4°F) | <10% |
Champion Gasket
Style AF 160
