STYLE 30 | CHAMPION SEALS INDIA PVT LTD

Asbestos Free(AF) Performance Packings - STYLE - 30

This PTFE packing is used where its exceptional chemical resistance is required in valves, rotary equipment and reciprocating plant at moderate loads.

Product Description

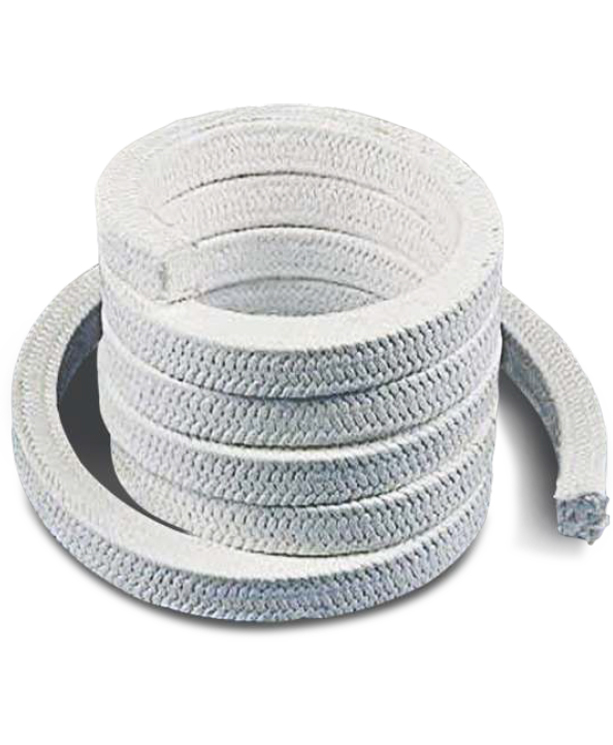

Champion Style 30 Pure PTFE Packing braided packing from 100% PTFE Fibre Yarn impregmented with customised PTFE Dispersions and Oils to generate extra lubrication.

Key Features

Excellent chemical resistance.
Long and efficient working life with minimum maintenance requirements.
Easy to install with highly conformable.
Non-toxic and inert to protect the purity and safety of fluid media.
Trouble-free operational life with reduced maintenance costs.
Inlube break-in lubricant provides additional lubrication.
PTFE dispersion acts as a blocking agent and antifriction additive.

Applications

CHAMPION Style 30 Pure PTFE Packing is used where its exceptional chemical resistance is required in valves, rotary equipment and reciprocating plant at moderate loads.

Compatible with media in the range pH 0-14 excluding strong oxidizing agents but excluding molten alkali metals, fluorine compounds and aqua regia. Can be used in highly aggressive and corrosive gases, concentrated acids and alkalies, ammonia, solvents, hydrocarbons, food stuff and pharmaceutical.

How Supplied

All popular sections from 3mm to 25mm in boxes containing length of 10m or in coil form by meter or 1/2.5 kilograms. Special size and lengths available on request.

Spool Ordering Information

Size		Standard Packaged (±10%)
mm	inch	Meter/kg	Meter/box	Kg/coil (Lbs)
3	1/8	60.06	10.00	0.18 (.37)
4	5/32	29.76	10.00	0.34 (0.74)
5	3/16	20.00	10.00	0.50 (1.10)
6	1/4	14.25	14.25	1 (2.2)
8	5/16	8.45	8.45	1 (2.2)
10	3/8	5.56	5.56	1 (2.2)
12.5	1/2	3.76	3.76	1 (2.2)
14	9/16	3.00	3.00	1 (2.2)
16	5/8	2.44	2.44	1 (2.2)
19	3/4	1.79	4.47	2.5 (5.5)
22	7/8	1.33	3.33	2.5 (5.5)
25	1	1.03	2.58	2.5 (5.5)
